Report Formats

KafkaGuard generates comprehensive reports in multiple formats to suit different use cases. This guide explains each format and when to use them.

Table of Contents

• Report Format Overview
• JSON Reports
• HTML Reports
• PDF Reports
• CSV Reports
• Report Naming Convention
• Next Steps

---

Report Format Overview

KafkaGuard supports four report formats, each optimized for different use cases:

Format	Best For	Use Case
JSON	Automation, CI/CD, programmatic analysis	Pipeline integration, automated processing
HTML	Web viewing, quick review	Human-readable reports, sharing with teams
PDF	Audit trails, compliance documentation	Regulatory audits, executive summaries
CSV	Spreadsheet analysis, data export	Tabular analysis, Excel integration

Generating Multiple Formats

You can generate multiple report formats in a single scan:

kafkaguard scan \
  --bootstrap kafka:9092 \
  --policy policies/enterprise-default.yaml \
  --format json,html,pdf,csv \
  --out ./reports

This generates all four formats with the same scan ID, making it easy to correlate results across formats.

---

JSON Reports

JSON reports provide structured data perfect for automation, CI/CD integration, and programmatic analysis.

Use Cases

• CI/CD Pipelines - Parse results to block deployments
• Automated Analysis - Extract metrics and trends
• Integration - Feed data into monitoring systems
• Scripting - Process findings programmatically

Example JSON Structure

{
  "metadata": {
    "scan_id": "abc123def456",
    "timestamp": "2025-11-15T14:30:00Z",
    "cluster_id": "kafka-prod-01",
    "cluster_mode": "kraft",
    "policy": "enterprise-default",
    "policy_version": "1.0"
  },
  "summary": {
    "score": 95,
    "total_controls": 40,
    "passed": 38,
    "failed": 2,
    "not_applicable": 0,
    "severity_breakdown": {
      "high": {"total": 18, "passed": 18, "failed": 0},
      "medium": {"total": 12, "passed": 11, "failed": 1},
      "low": {"total": 10, "passed": 9, "failed": 1}
    }
  },
  "findings": [
    {
      "control_id": "KG-001",
      "title": "SASL authentication enabled",
      "status": "PASSED",
      "severity": "HIGH",
      "category": "security",
      "evidence": "SASL authentication is enabled on all brokers",
      "remediation": "",
      "compliance": {
        "pci_dss": ["8.1", "8.2"],
        "soc2": ["CC6.1"],
        "iso27001": ["A.9.2.1"]
      }
    }
  ]
}

Parsing JSON Reports

Extract overall score:

cat reports/scan-*.json | jq -r '.summary.score'
# Output: 95

List failed controls:

cat reports/scan-*.json | jq -r '.findings[] | select(.status == "FAILED") | "\(.control_id): \(.title)"'

Count HIGH severity failures:

cat reports/scan-*.json | jq '[.findings[] | select(.status == "FAILED" and .severity == "HIGH")] | length'

Extract compliance mappings:

cat reports/scan-*.json | jq '.findings[] | select(.compliance.pci_dss | length > 0) | {control_id, pci_dss: .compliance.pci_dss}'

---

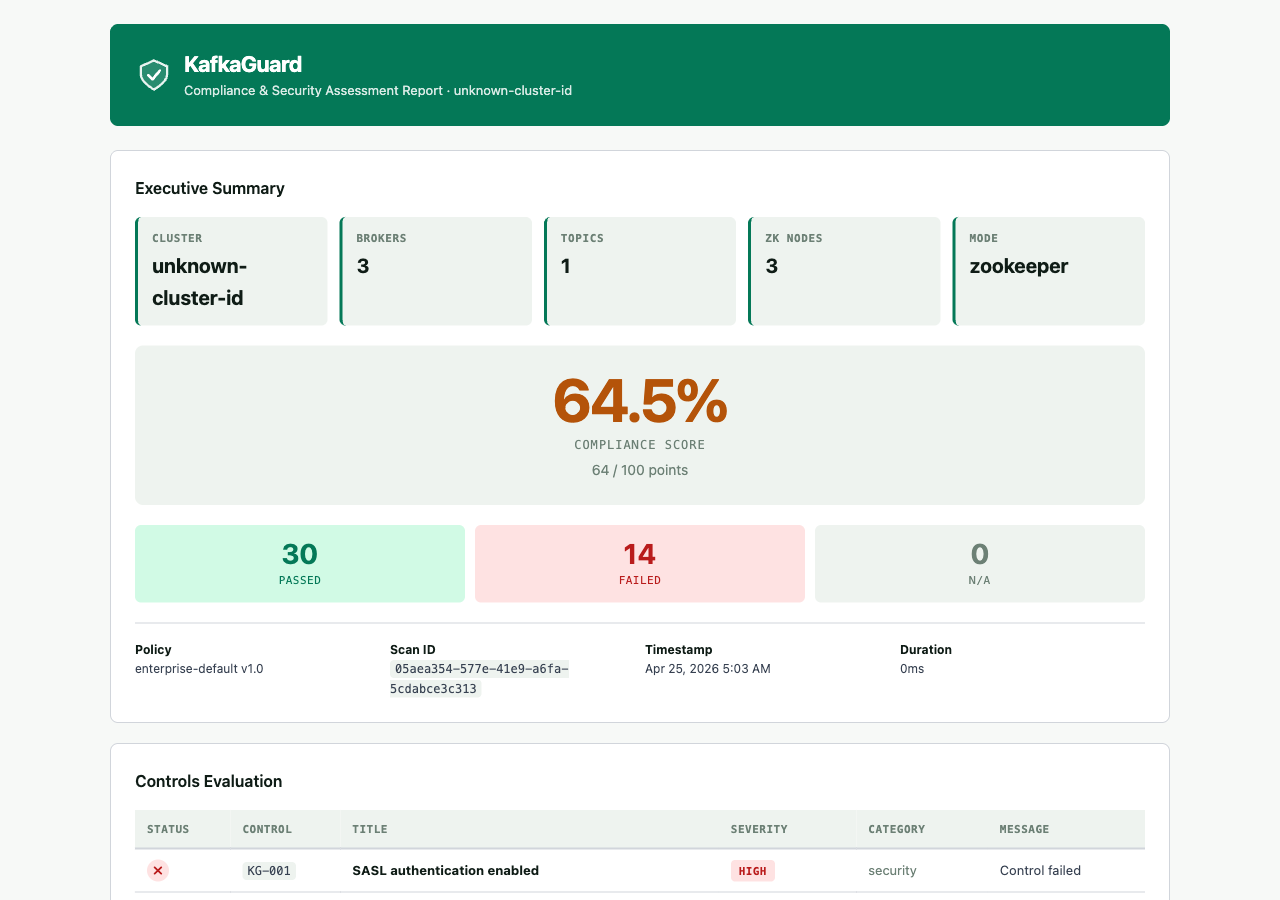

HTML Reports

HTML reports provide human-readable, web-viewable reports with executive summaries and detailed findings.

Use Cases

• Quick Review - View results in a browser
• Team Sharing - Share reports via email or web server
• Executive Summaries - High-level overview for stakeholders
• Visual Analysis - Color-coded results and charts

HTML Report Features

• Executive Summary - Overall score and key metrics
• Color-Coded Results - Green (passed), Red (failed), Gray (N/A)
• Detailed Findings - Full control descriptions and remediation
• Compliance Mapping - PCI-DSS, SOC2, ISO 27001 mappings
• Printable Format - Optimized for printing

Viewing HTML Reports

# macOS
open reports/scan-*.html

# Linux
xdg-open reports/scan-*.html

# Or serve via web server
python3 -m http.server 8000
# Then open http://localhost:8000/reports/scan-*.html

---

PDF Reports

PDF reports are audit-ready documents with professional layout, compliance mappings, and a severity bar chart. They are the recommended format for regulatory audits and executive presentations.

Use Cases

• Regulatory Audits — Printable, signed compliance evidence
• Executive Presentations — Professional layout with score summary
• Historical Records — Archive point-in-time compliance state
• Compliance Sign-off — Optional sign-off page for auditor signatures

PDF Report Features

• Real version — Cover page shows the actual kafkaguard scanner version, not a placeholder
• Severity bar chart — Visual horizontal bars (green = pass, red = fail) per HIGH / MEDIUM / LOW severity in the executive summary
• Compliance Mapping — Detailed PCI-DSS, SOC2, ISO 27001 tables
• Remediation — Actionable fix instructions per failed control
• Optional Sign-off — Append a sign-off page with --sign-off "Name, Title"
• Timestamped — Includes scan metadata and timestamps
• Printable — Optimized for A4 printing and archival

Generating PDF Reports

# Basic PDF generation
kafkaguard scan \
  --bootstrap kafka.prod:9095 \
  --policy policies/enterprise-default.yaml \
  --format pdf \
  --out /var/reports/kafkaguard

# PDF with compliance sign-off page
kafkaguard scan \
  --bootstrap kafka.prod:9095 \
  --policy policies/finance-iso.yaml \
  --format pdf \
  --out /var/reports \
  --sign-off "Jane Smith, CISO"

Sign-Off Page

Pass --sign-off "Name, Title" to append a final page to the PDF:

Field	Content
Prepared by	The name and title you passed to --sign-off
Date	Today's date (auto-populated)
Signature	Blank line for wet or digital signature

This is required by many compliance frameworks (PCI-DSS, SOC2, ISO 27001) for audit trail completeness.

Regenerating Historical PDF Reports

Use kafkaguard report generate to create a PDF from any previously saved scan JSON — without re-running a scan.

# From a local JSON file
kafkaguard report generate \
  --input reports/scan-20260425-abc123.json \
  --format pdf \
  --output /tmp/audit-reports \
  --sign-off "Jane Smith, CISO"

# From the on-prem API by scan ID
kafkaguard report generate \
  --scan-id ea8a9a77-... \
  --api http://kafkaguard.internal:3001 \
  --api-key $KAFKAGUARD_API_KEY \
  --format pdf \
  --output /tmp/audit-reports

The regenerated PDF carries the original scanner version embedded in the scan JSON — not the version of the binary that regenerated it. This maintains an honest audit trail.

---

CSV Reports

CSV reports provide tabular data perfect for spreadsheet analysis and data export.

Use Cases

• Spreadsheet Analysis - Import into Excel or Google Sheets
• Data Export - Extract data for external analysis
• Trend Analysis - Track findings over time
• Custom Reporting - Build custom reports from CSV data

CSV Report Structure

CSV reports include one row per control with the following columns:

• control_id - Control identifier (e.g., KG-001)
• title - Control title
• status - PASSED, FAILED, or N/A
• severity - HIGH, MEDIUM, or LOW
• category - security, reliability, operational, or compliance
• evidence - What was found
• remediation - How to fix it
• pci_dss - PCI-DSS requirements (comma-separated)
• soc2 - SOC2 criteria (comma-separated)
• iso27001 - ISO 27001 controls (comma-separated)

Using CSV Reports

Import into Excel:

1. Open Excel
2. File → Open → Select CSV file
3. Data is automatically parsed into columns

Filter failed controls:

# Using csvkit (install: pip install csvkit)
csvgrep -c status -m FAILED reports/scan-*.csv

Count by severity:

# Using awk
awk -F',' 'NR>1 {print $4}' reports/scan-*.csv | sort | uniq -c

---

Report Naming Convention

All reports follow a consistent naming pattern:

scan-<timestamp>-<scan_id>.<format>

Example:

scan-20251115140530-abc123def456.json
scan-20251115140530-abc123def456.html
scan-20251115140530-abc123def456.pdf
scan-20251115140530-abc123def456.csv

Benefits:

• Chronological Sorting - Timestamp first enables easy sorting
• Easy Correlation - Same scan_id across all formats
• Unique Identifiers - Prevents overwrites
• Glob Pattern Matching - Easy to find reports (scan-*.json)

---

Next Steps

• Scanning Guide - Learn how to generate reports during scans
• Configuration Guide - Configure report output directories
• Policy Tiers - Understand how policies affect report content
• Advanced Usage - Learn about report automation and integration

---
