On-Prem Setup Guide

KafkaGuard On-Prem is a fully self-hosted, air-gapped Kafka compliance platform. It includes a web dashboard, REST API, scan processor, and all infrastructure — deployable with a single installer script.

Architecture

  • API (Fastify) — REST API for scan ingestion, queries, auth
  • Worker (BullMQ) — Async scan processor with compliance scoring
  • Dashboard (Next.js) — Web UI for clusters, findings, scans, users
  • PostgreSQL — Database with RLS for multi-tenancy
  • Redis — Job queue for scan processing
  • MinIO — S3-compatible object storage for raw scan data
  • Nginx — TLS termination reverse proxy

Installation

Prerequisites

  • Docker 24+ with Compose plugin
  • 10GB free disk space
  • Ports: 80, 443 (HTTPS), or 3000/3001 (dev mode)

Quick Install

# Extract the bundle
tar -xzf kafkaguard-onprem-v2.0.0.tar.gz
cd kafkaguard-onprem

# Run installer (interactive)
./installer/install.sh

The installer will:

  1. Run preflight checks (Docker, ports, disk space)
  2. Generate JWT keys and secrets
  3. Set up TLS certificates (self-signed or your own)
  4. Start all services via Docker Compose
  5. Create your admin account

Verify Installation

Open your browser to https://your-server and log in with the admin credentials you set during installation.

Dashboard Overview

Clusters

View all your Kafka clusters with compliance scores, environment tags, and open findings count. The grid layout scales to show multiple clusters at a glance.

Clusters Overview

Findings Explorer

Browse security violations with severity filters, state management (acknowledge/resolve), and inline remediation guidance.

Findings

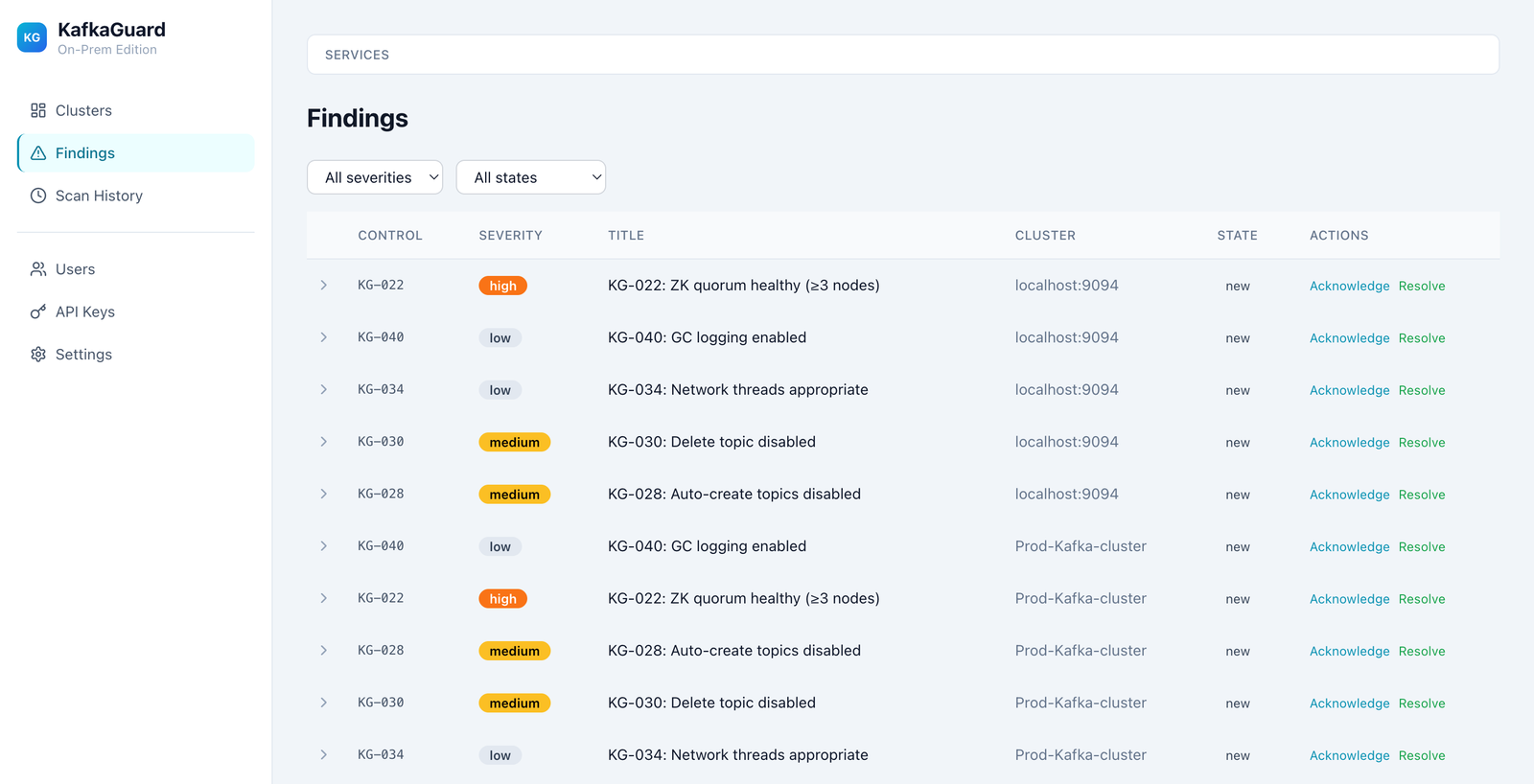

Remediation Guidance

Click any finding row to expand it and see detailed remediation instructions. Each control includes specific steps to fix the issue.

Findings with Remediation

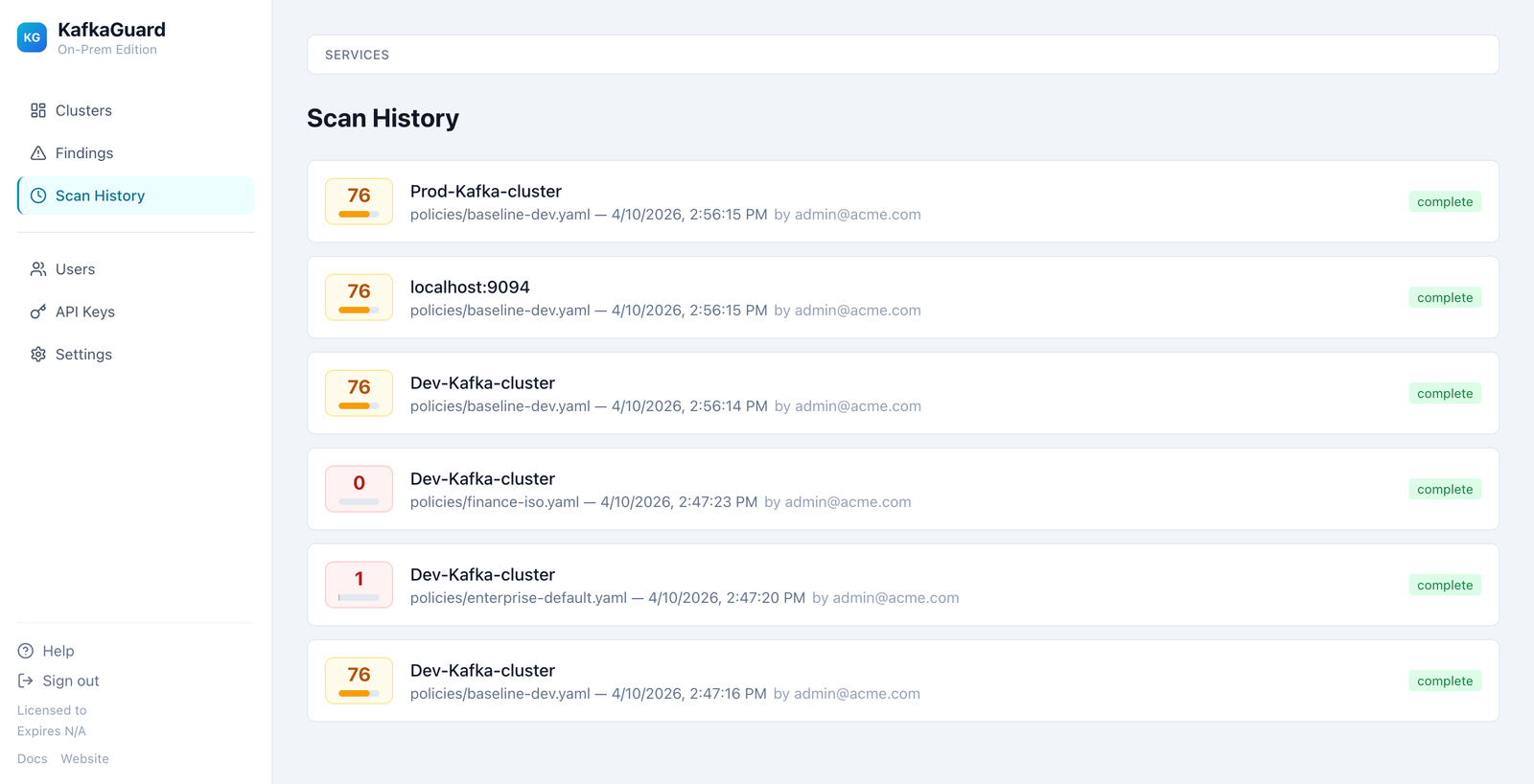

Scan History

Timeline of all scans across all clusters, with scores, policies used (baseline-dev, enterprise-default, finance-iso), and who uploaded them.

Scan History

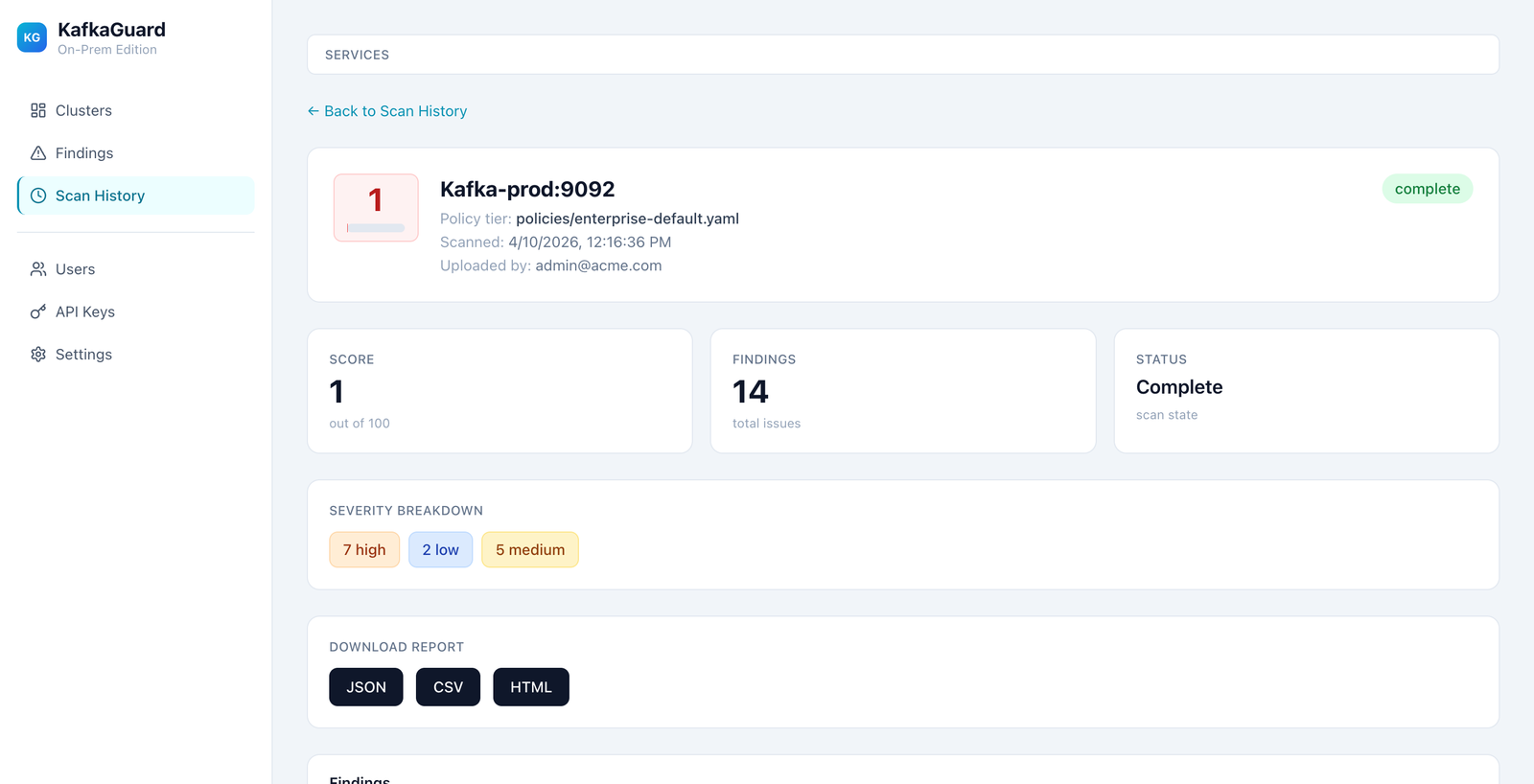

Scan Detail

Drill into any scan to see severity breakdown, download reports (JSON/CSV/HTML), and view findings.

Scan Detail

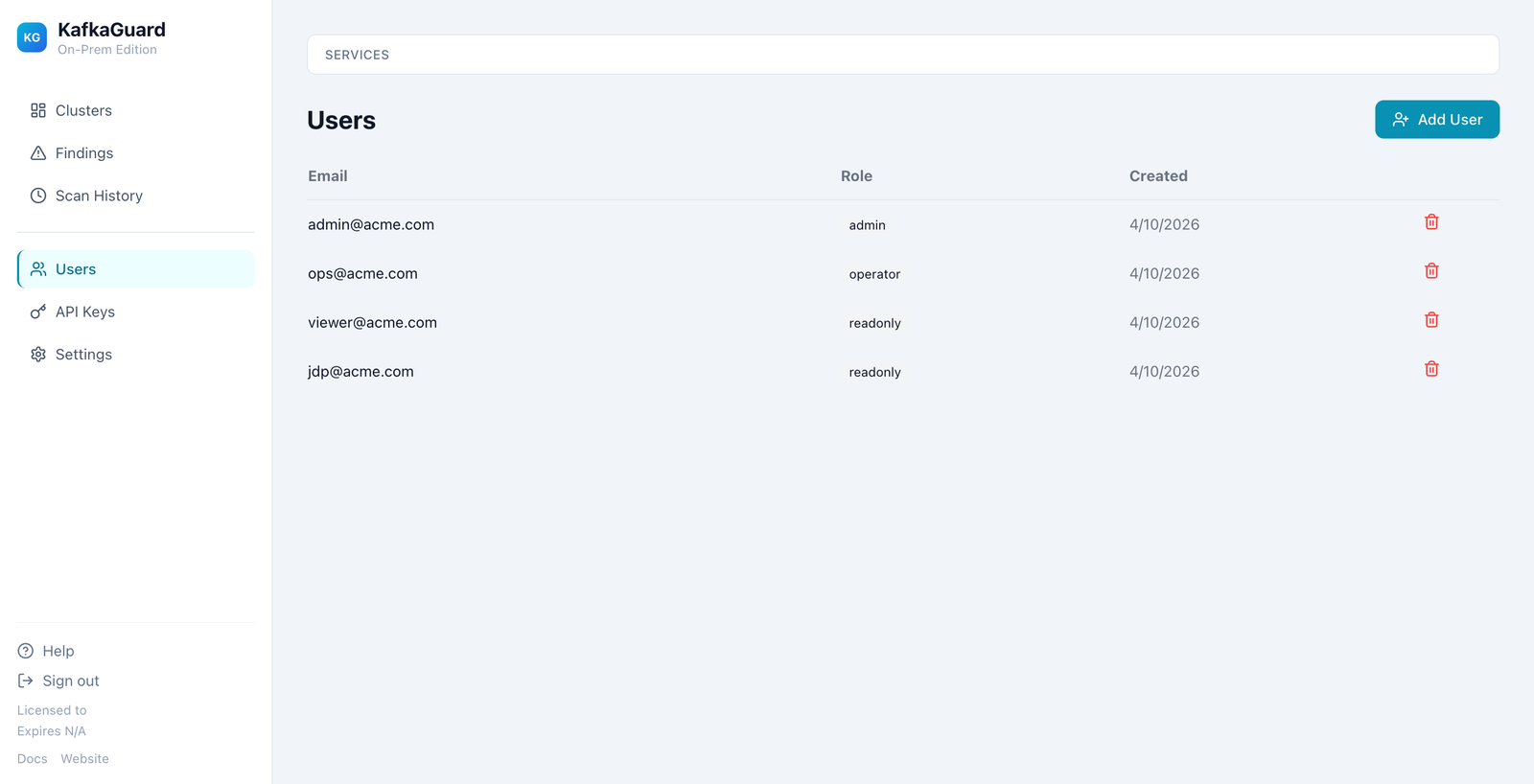

User Management

Manage team members with role-based access: Admin, Operator, and Read-only.

Users

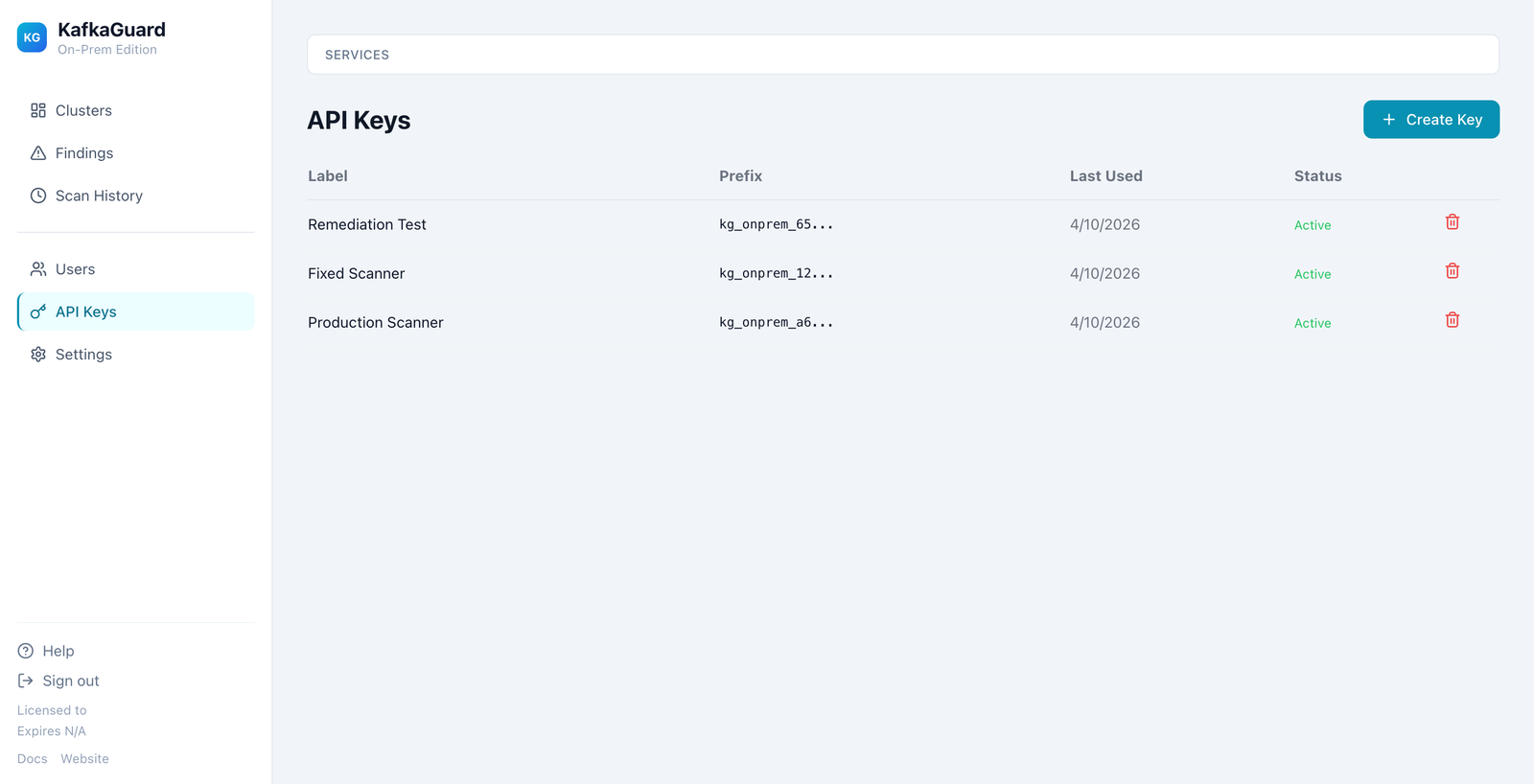

API Keys

Create and manage API keys for CLI scan uploads.

API Keys

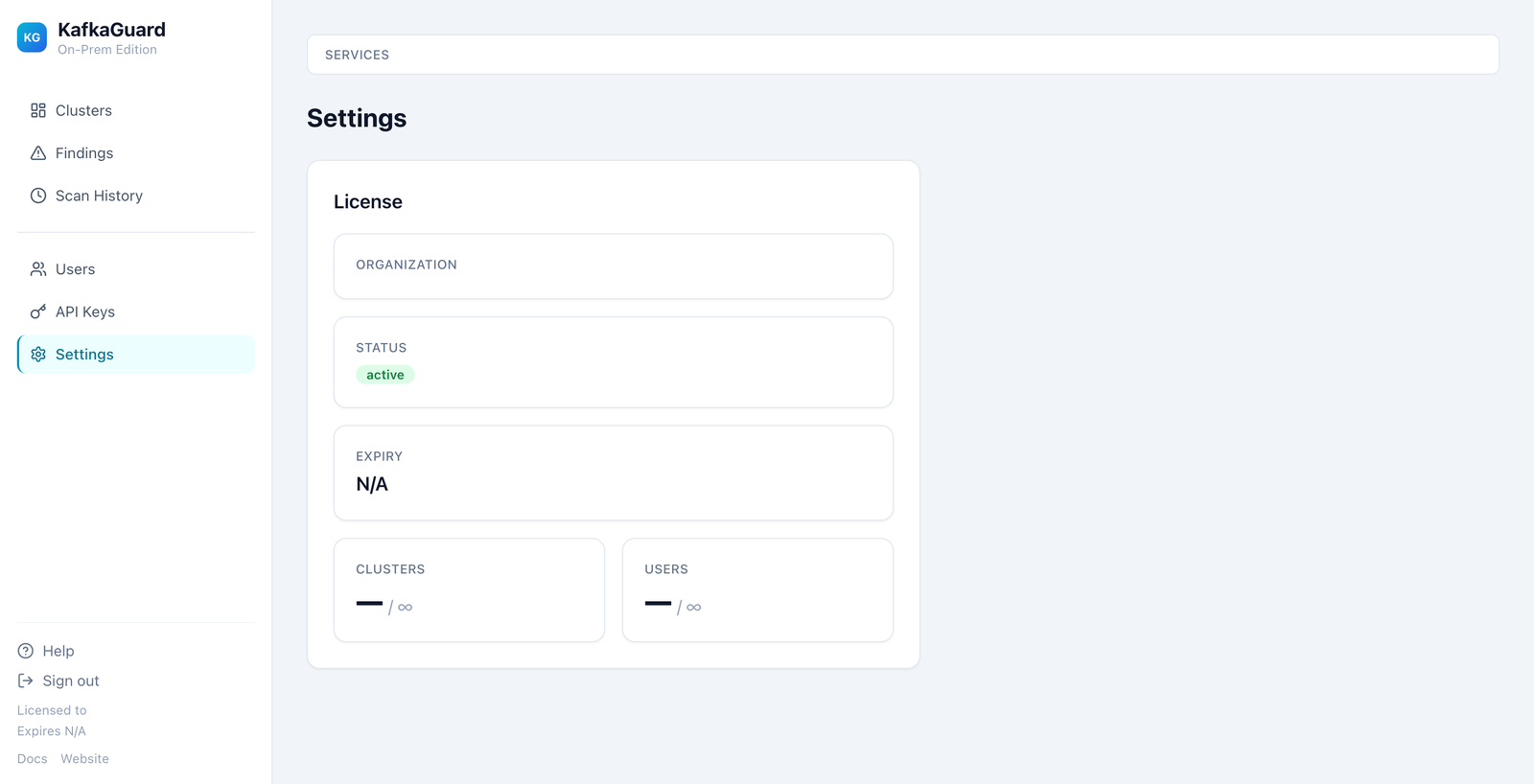

Settings & License

View license status, cluster/user usage, and organization details.

Settings

Uploading Scans

From CLI

# Create an API key in Dashboard → API Keys → Create Key
export KAFKAGUARD_API_KEY=kg_onprem_your_key_here

# Scan and upload in one command
kafkaguard scan \
  --bootstrap kafka1:9092,kafka2:9092,kafka3:9092 \
  --policy policies/enterprise-default.yaml \
  --upload https://your-kafkaguard-server

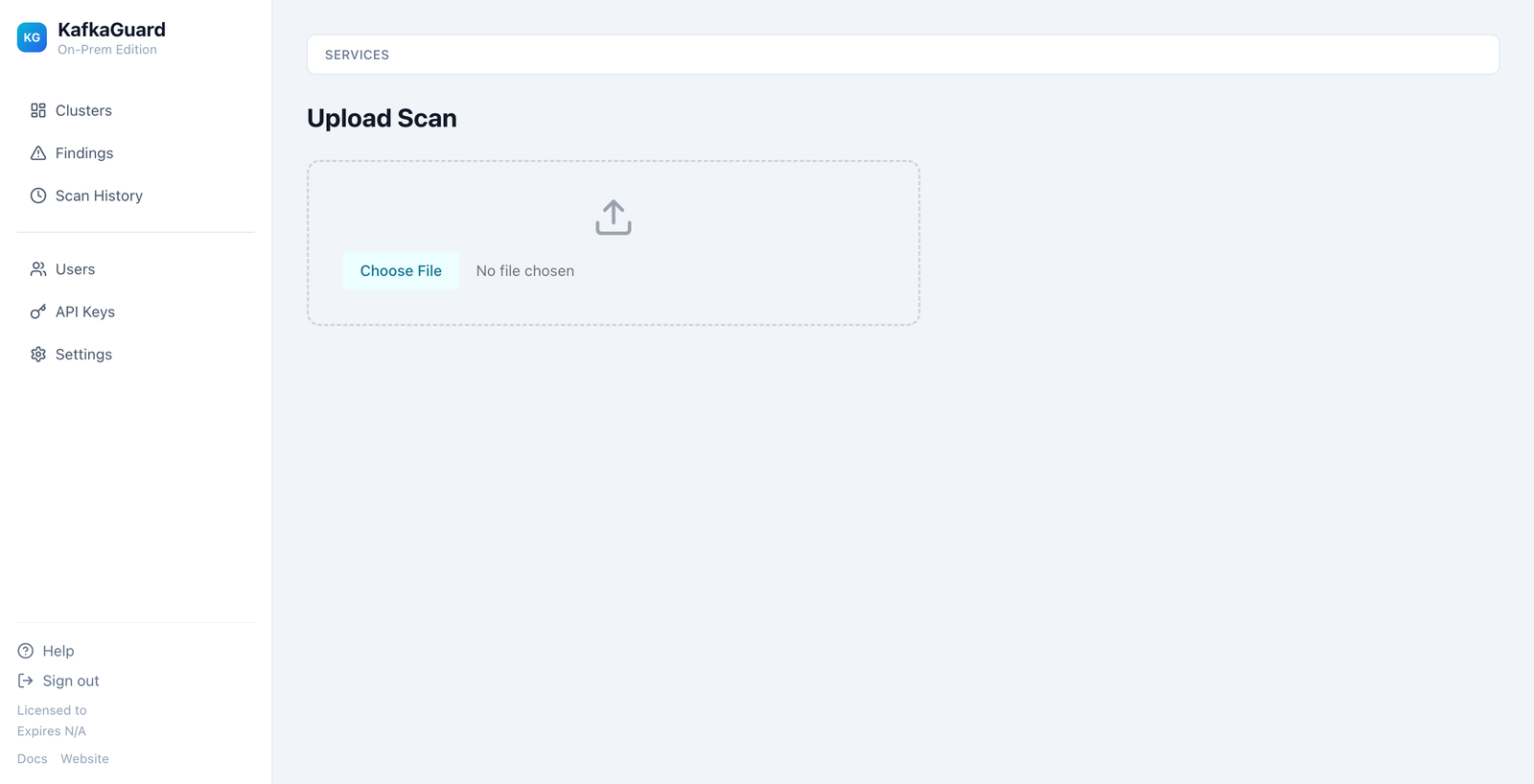

Manual Upload

Use Dashboard → Upload Scan to upload a JSON scan file directly.

Upload

Backup & Restore

# Create a backup
./installer/backup.sh backup

# List backups
./installer/backup.sh list

# Restore from backup
./installer/backup.sh restore backups/kafkaguard-backup-20260410-120000

Backups are automatically created before upgrades.

Upgrading

# Extract new version
tar -xzf kafkaguard-onprem-v1.1.0.tar.gz

# Run upgrade (auto-backup + rolling restart)
./installer/upgrade.sh

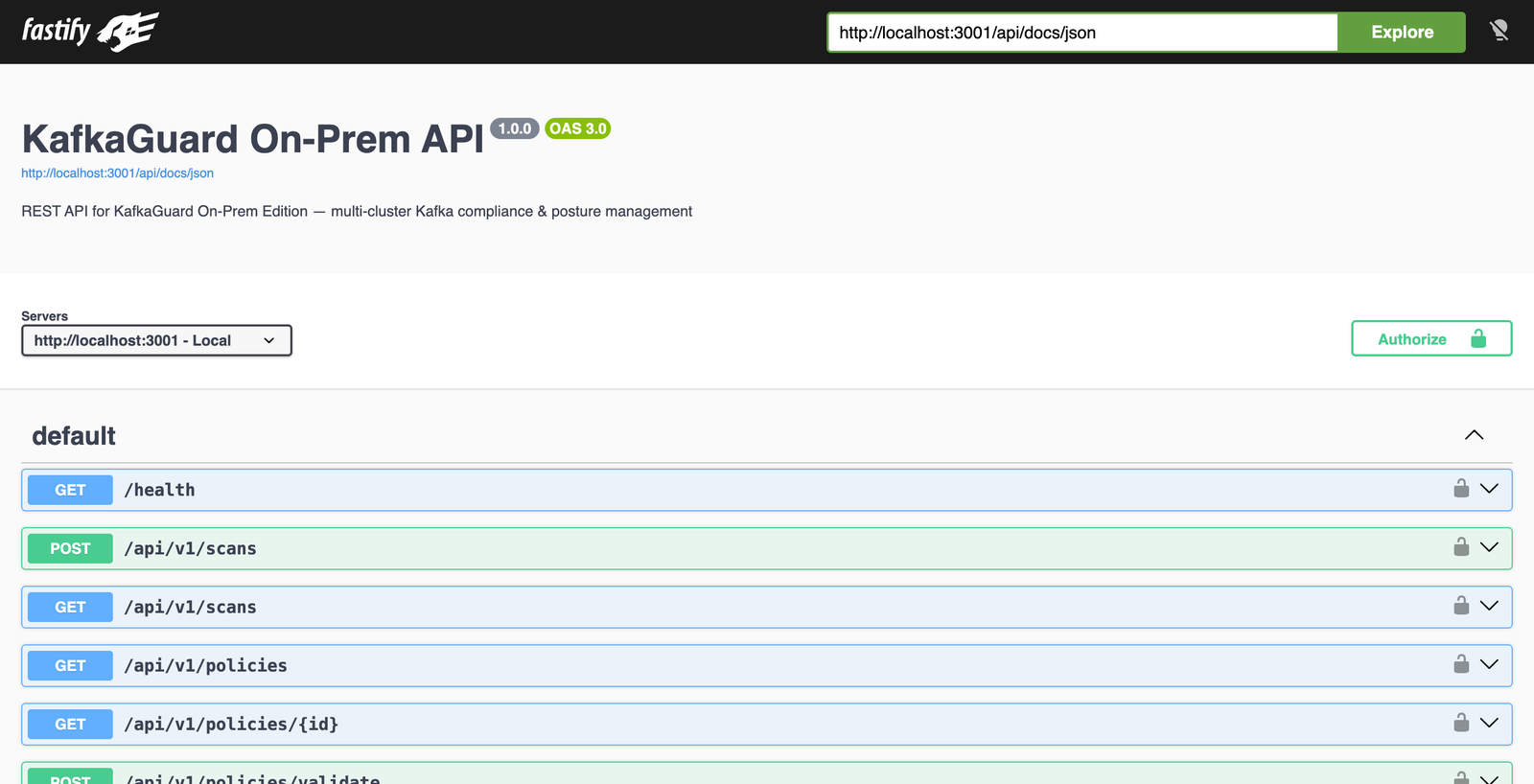

API Documentation

Interactive API docs are available at https://your-server/api/docs (Swagger UI).

API Docs
